| Weight (g/oz) | 980–995/34.57–35.10 |
| Length (mm/in) | 442/17.40 |
| Main tube diameter (mm/in) | 34/1.34 |
| Magnification | 10–60 |
| Objective diameter (mm)/(in) | 56/2.20 |
| Field-of-view (m/100 m)/(ft/100 yd) | 4.4–0.8/13.3–2.3 |
| Field-of-view [USA] (m/100 m)/(ft/100 yd) | 3.74–0.64/11.2–1.9 |
| Exit pupil diameter (mm/in) | 5.6–1.0/0.22–0.04 |
| Eye relief distance (mm)/(in) | 90/3.54 |
| Twilight factor | 23.7–58.0 |
| Transmission (%) | >90 |
| Focal Plane | 1 |
| Diopter adjustment (dpt) | -3 to +2 |
| Turrets (Elevation / Windage) | DT II+ MTC LT / ST II ZC LT |
| Click value | 0.1 mrad |
| Adjustment range elevation | 23.5 mrad |
| Adjustment range windage | ±6 mrad |
| Turrets (Elevation / Windage) | MT II MTC LT / DT II+ ZC LT |
| Click value | 0.5 cm/100 m |
| Adjustment range elevation | 235 cm/100 m |
| Adjustment range windage | ±68 cm/100 m |
| Parallax adjustment (m/yd) | 20 to ∞/21.87 to ∞ |
| Illumination | 11 settings |
| Waterproof (m)/(ft) | 3 |
| Temperature range | |
| Storage (°C)/(°F) | –55 to +71/–67 to +160 |
| Function (°C)/(°F) | –40 to +61/–40 to +142 |
| Turret rotation | cw/ccw |
| Color | Black |
| Reticle | M1FL |
Schmidt & Bender 10-60×56
A rifle scope for competition shooting:
Developed specifically for competition shooting, the new Schmidt & Bender 10-60×56 rifle scope is made for Bench Rest, F-Class, Long Range and Extreme Long Range shooters.
Outstanding optical quality:
A large field of view combined with a generous exit pupil allows for comfortable target acquisition.
The 56 mm objective lens diameter with over 90% light transmission provides a clear, bright and high contrast image even at extreme magnification.
LPI (Illumination Parallax integrated) function:
Featuring the “LPI” function, allowing the use of 11 levels of illumination and parallax correction from 20 m to infinity with a simple handle, the Schmidt & Bender 10-60×56 is a state-of-the-art product whose quality represents Schmidt & Bender expertise.

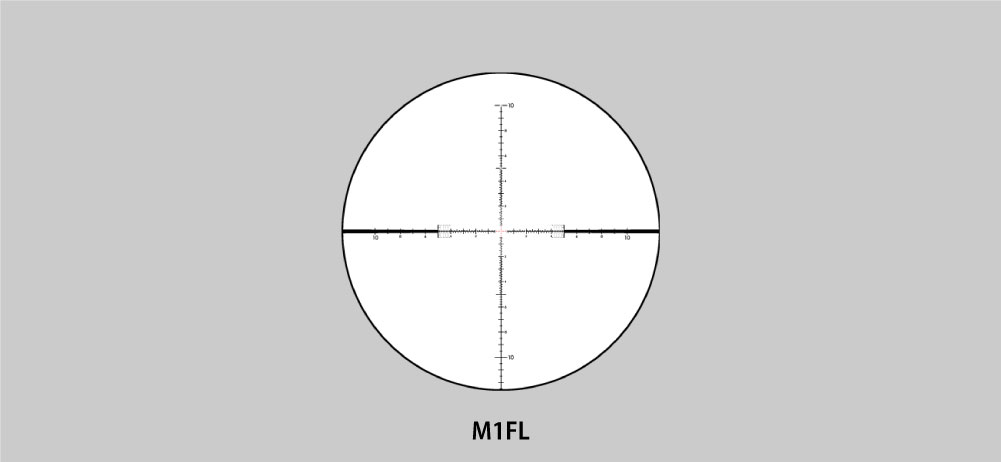

New M1FL reticle:
The M1FL is the latest model for shooting sports based on the famous LRR-MIL reticle. It is a precise mrad reticle in the first focal plane, optimised for very high precision disciplines as well as for shooting at extreme distances.
Caracteristics
Dimensions
| Unit | A | B | C | D | E | F | G | H | J | K | L |
| mm inch |
93,2 3.67 |
72,5 2.85 |
53,8 2.12 |
73,2 2.88 |
89,0 3.50 |
60,0 2.36 |
28,1 1.11 |
62,0 2.44 |
34,0 1.34 |
50,0 1.97 |
441,7 17.39 |
| M | N | P | Q | R | S | T | U | V | W |
| 39,0 1.54 |
39,0 1.54 |
39,0 1.54 |
41,0 1.61 |
7,3 0.29 |
30,0 1.18 |
18,8 0.74 |
29,1 1.15 |
34,1 1.34 |
52,0 2.05 |
